Portable 110kw High Pressure Concrete Pump Twin Pump Twin Circuit Hydraulic System

Name: Portable 110kw High Pressure Concrete Pump Twin Pump Twin Circuit Hydraulic System
Brand: Zoomwolf
Price: 1 USD

Model Number : HBT80S16110C

Brand Name : Zoomwolf

Certification : ISO

Place of Origin : Changsha,China

MOQ : 1 Set

Price : Negotiable

Packaging Details : Large structural parts are bundled，Small pieces are packed in iron cases.

Applicable Industries : Construction works

Name : Electric Concrete Pump

engine power : 110kw

weight : 6450kg

Feature : Easy Operation

Contact Now

Portable 110kw High Pressure Concrete Pump 6275×1962×2215 mm

Name of parameter	Unit	HBT80S16110C
Output capacity	m³/h	55(high pres.)/80(low pres.)
Output pressure	MPa	16(high pres.)/9(low pres.)
Distribution Valve		SValve
motor model		Y2-315S-4
Rated power of motor	kW	110
Rated rotating speed /voltage	rpm/V	1480/380
Displacement of the main oil pump	ml/r	260
Oil pres.of the pumping system	MPa	32
Delivery cylinder diam.×stroke	mm	Φ200×1800
Hydraulic system circle form	Twin-pump and -circuit open sys.
Hopper volume	L	730
Feeding height	mm	1400
Oil tank volume	L	500
Max.grain size	mm	pebbleФ50,crush.stoneФ40
Overall dimension L×W×H	mm	6275×1962×2215
Total mass	kg	6450

twin-pump twin-circuit hydraulic system of concrete pump

Twin-pump twin-circuit advantages: convenient fault diagnosis, convenient maintenance. And it is beneficial to extend the service life of oil pump.

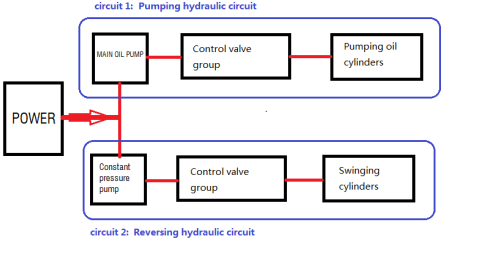

The pressure oil of the main pump is supplied to the pumping circuit, and the pressure oil of the constant pressure pump is supplied to the reversing circuit, which is called "twin-pump twin-circuit".

This is shown below.

Portable 110kw High Pressure Concrete Pump Twin Pump Twin Circuit Hydraulic System

6-fig.(1)twin-pump twin-circuit

Portable 110kw High Pressure Concrete Pump Twin Pump Twin Circuit Hydraulic System
